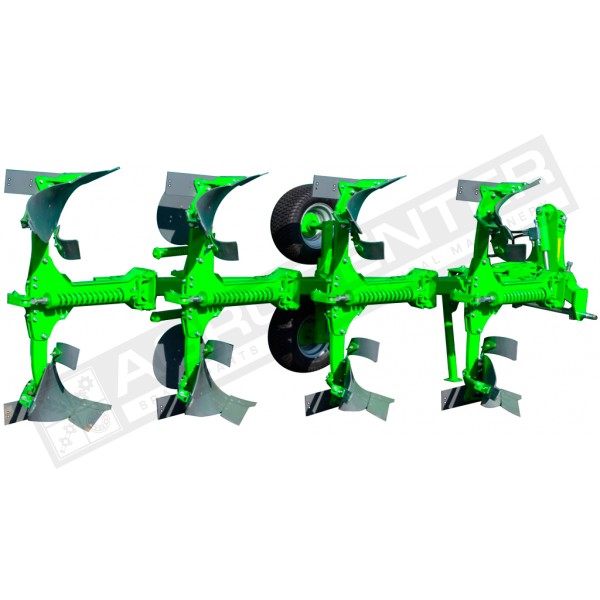

AGN 21-440 Plow hinged reversible 4 body (spring protection), with reinforced head

These plows are intended for post-harvest and medium tillage (up to 30 cm deep),On a flat terrain, but can also be used on sloping terrain (up to 10%).They are intended for the processing of land after grains and industrial crops, where the soil resistance does not exceed 110 kPa.

Plows are quite suitable for sandy and clay soils with less clay content, but can be used on heavier grounds.

Plow production is based on many years of experience and quality control. The materials used in the production are of high quality and meet the specifications of the production documentation.

Each product is manufactured and tested according to certified materials. The front of the plow has a rotary hinge. The method of assembly is chosen so that it guarantees the long life of the reversible mechanism. Simple connection to the plow frame using pins and rods (For plow 540 a frame with thicker walls is used). The stands of the plow are made of metal of high strength and flexibility.

Protection of the plow from the stones is carried out at the expense of the springs that allow the plow to deflect when hit on a stationary obstacle.The plow itself forms a solid structure, on which the working parts are installed.The components of the plows are made of high quality drilling steels (ABR 500, Hardox) by Finnish and Swedish manufacturers, and are the guarantor of the durable and smooth operation of the machines.Strength, abrasion resistance and minimal soil adhesion on the work surfaces.

The entire design of the plow is designed in such a way that plowing and maintenance of the plow were simple.The plow is rotated using a hydraulic cylinder, and driven from the tractor cabin through an external hydraulic lever.Adjust the body of the plow (350-400-450 mm) manually. Adjustment of the first housing and the plow depth are carried out using screws. This adjustment is very reliable and easy to set up.

Characteristics:
